Folder Features

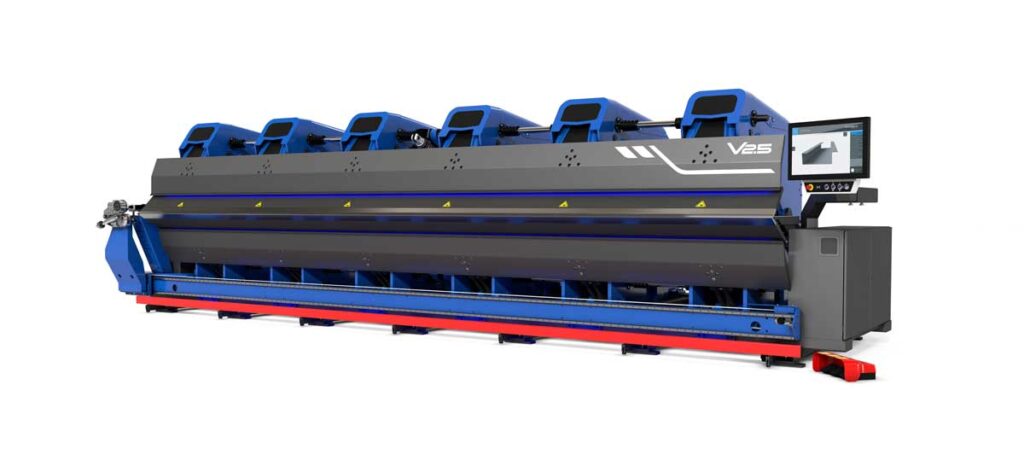

Model: ASCO USA V2.5-6

Supplier: ASCO USA, Inc. • Folder Manufacturer: ASCO Machines

Folder Model: V2.5-6 Fully Electric Double Folder

Features: Fully electric (no hydraulics), energy efficient
Bending clearance of 300 degrees
Loading tables
Fully automated slitter adjustment
Dynamic pressure regulation system
*Total control for open hems and interlocks
Crowning system with fully electric controls
Advanced gripper system
V2.5 smart safety features
LED lights with operation signaling
Anchorless heavy-duty frame
Remote control operator
V-Series API

Footprint (dimensions)/space requirements: 29’ L x 12.86’ W

Weight: 41,500 lbs.

Power Source: 480V 3 phase

Controls: 24” touch screen with 3D software (9.8” screen option).
V-Series Office Software

Maximum fold length: 21’ 4” for this model

Maximum thickness that can be folded: 12 ga. mild steel

Maximum bending angle: 150 degrees

Additional details: Integration with Bendex and Sema (Paradigm and QBMS coming soon)

Website: www.asco-machines.com

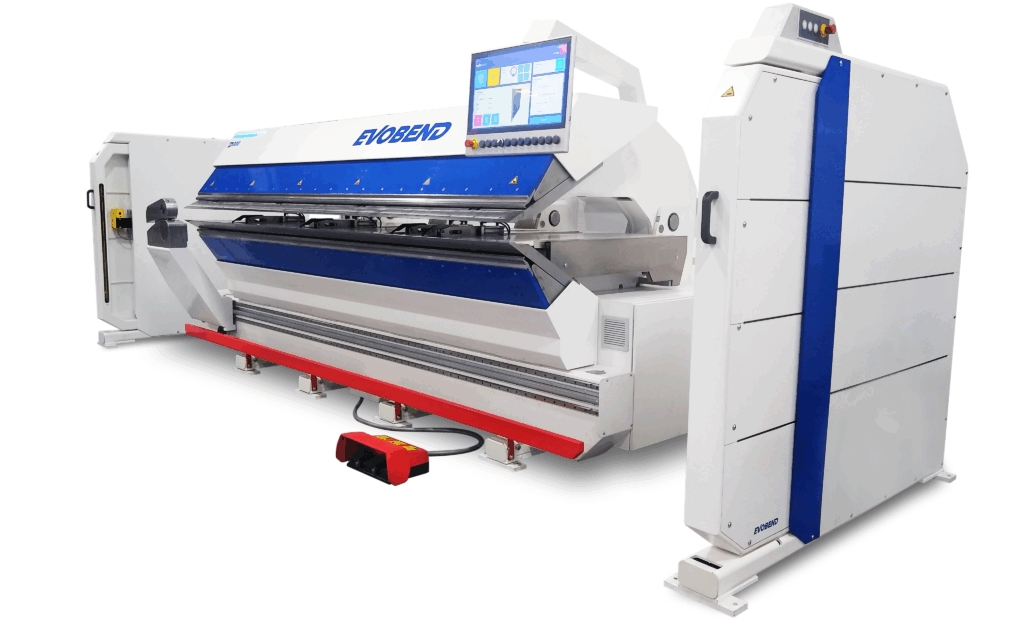

Model: Evobend D300 10.5’ Double Folder

Supplier: Roper Whitney • Folder Manufacturer: Evobend

Folder Model: D300 (shortest in this series)

Features:

Fully electric bidirectional folder with front slitter and loading table. 300 degree bending freedom (150° up, 150° down), compact design, shortest in the D-series lineup. Other sizes available.

Fully enclosed, innovative safety fence, no swinging bending beam, unique “hook like” tools for automatic hemming, all servo driven for reduced maintenance and less energy consumption, quiet operation.
